C-Gard™ & C-Sentry™ – Sacrificial Anodes Protecting Against Corrosion

Marine

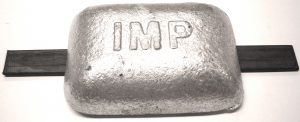

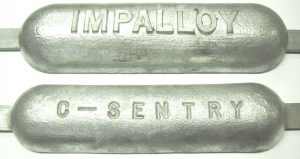

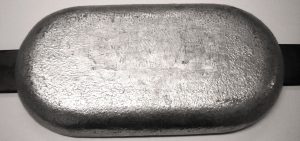

The C-Sentry flush mounted anode range for hulls and tanks, in either Zinc or Aluminium with or without painted bases, has been well known and respected for many years. There are anodes to suit every class of vessel from inshore fleets to naval vessels. C-Sentry anodes feature in many MOD and NATO specifications fro protection of vessels.

Simply select the size and weight of C-Sentryanode required from the table below. Impalloy can create sacrificial anodes to any size and fixing method from our extensive mould list. Please either call or use the contact form to request prices.

C-Sentry Aluminium Hull Anodes

Anode Type Overall Dimensions mm Anode Body mm Weight (kg) Drawing
Length Width Depth Length Width Depth Net Gross Standard
13XH 254 102 38 152 102 38 1.3 1.6 C5536
28XH 394 127 32 318 127 32 2.8 3.5 C5537
36XH 457 152 32 355 152 32 3.6 4.5 C5538
54XH 565 102 61 445 102 61 5.4 6.2 C4991
63XH 826 85 49 610 85 49 6.3 7.8 C5539
76XH 826 102 49 610 102 49 7.6 9.1 C5540
93XH 826 140 43 610 140 43 9.3 10.8 C5541
124XH 826 138 65 605 138 65 12.4 13.9 C5542
200XH 838 286 80 762 133 80 20.0 22.5 C5543
202XH 1038 121 80 774 121 80 20.2 22.7 C5242
320XH 1435 152 64 1219 152 64 32.0 35.4 C5544
352XH 1435 175 66 1219 175 66 35.2 38.6 C5545

C-Sentry Zinc Hull Anodes

Anode Type Overall Dimensions mm Anode Body mm Weight kg Drawing No
Length Width Depth Length Width Depth Net Gross
28ZH 238 83 41 171 83 41 2.8 2.9 911
38ZH 310 83 36 200 83 35 3.8 4.3 3104
41ZH 381 76 38 305 76 38 4.1 4.5 963
55ZH 440 90 40 330 90 40 5.5 6.1 964
86ZH 458 152 32 356 152 32 8.6 9.6 958
117ZH 508 101 50 356 101 50 11.7 12.6 C3207
137ZH 565 102 61 445 102 61 13.7 14.5 C4991
141ZH 557 100 62 457 100 62 14.1 15 965
164ZH 826 85 49 610 85 49 16.4 15 960
186ZH 811 203 38 811 101 38 18.7 20 966
187ZH 911 203 38 811 102 38 18.7 20 969
202ZH 826 102 49 610 102 49 20 21.7 962
246ZH 826 140 43 610 140 43 24.6 26.1 961
285ZH 913 203 64 813 102 64 28.5 30 970

C-Sentry Aluminium Tank Anodes

Anode Type Anode Length Fixing length Anode width anode depth Core Diameter Net Weight Kg Gross weight Kg Drawing no
81XT 1197 227 51 51 12 8.1 9.6 C5787
102XT 1508 227 51 51 12 10.2 12.0 C5788
116XT 1225 227 60 60 12 11.6 13.1 C5789
132XT 1504 227 54 62 12 13.2 15.0 C5790
160XT 1478 227 64 64 12 16.0 17.7 3454
188XT 1223 227 76 76 12 18.8 20.3 C5725

C-Sentry Zinc Tank Anodes

Anode Type Anode Length Fixing length Anode width anode depth Core Diameter Net Weight Kg Gross weight Kg Drawing No
94ZT 560 227 51 51 12 9.4 10.3 11
212ZT 1213 227 51 51 12 21.2 22.7 12
304ZT 1244 227 60 60 12 30.4 31.9 13
318ZT 1175 227 63 63 12 31.8 33.3 14
450ZT 1133 227 76 76 12 45.0 46.4 15
500ZT 1493 227 70 70 12 50.0 51.8 B1432

C-Sentry & C-Gard Sacrifical Anodes protecting against corrosion
