Ports/Harbour

C-Gard platform anodes are available in a variety of sizes and insert dimensions. The table below lists the standard anode sizes available in straight through insert designs. Select the anode dimensions required and the insert type. The insert can be designed to meet your specific requierements for fixing methods.

We have a number of frame and sled design systems that have been developed to reduce diver time and underwater welding, which means that you are able to deliver projects quicker and at lower cost.

If the anode required is not listed Impalloy can create a suitable anode either from our stock of existing moulds, or we can fabricate moulds to suit in our extensive fabrication facilities.

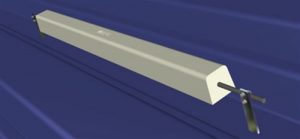

C-Gard Platform Anodes

Anode Type	Length mm	Width mm	Depth mm	Insert Diameter mm		Alloy net weight Kg	Alloy Nett Weight per Metre Kg
Anode Type	Length mm	Width mm	Depth mm	Round bar	Tubular Nominal Bore	Alloy net weight Kg	Alloy Nett Weight per Metre Kg
350XP-S16-	1301	101	101	20		35	26.9
800XP	2365	114	114	25		80	33.8
500XP	1300	120	120	20		50	38.5
680XP	1515	133	127	20		68	44.9
1190XP	1526	184	159	25		119	78.0
1240XP	1800	160	162	25		124	68.9
1640XP	2454	160	162	40		164	66.8
1480XP	2373	160	162		50	148	62.4

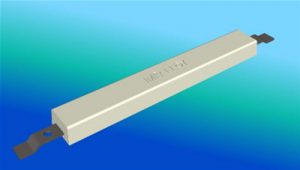

C-Sentry Flush Mounted Anodes

Anode Type	Length mm	Width mm	Depth mm	Insert Diameter mm		Alloy net weight Kg	Alloy Nett Weight per Metre Kg
Anode Type	Length mm	Width mm	Depth mm	Flat Bar	overall length	Alloy net weight Kg	Alloy Nett Weight per Metre Kg
202XH	838	133	78	50 x 6	1038	20.2	22.7
320XH	1219	152	64	50 x 6	1435	32	35.4
352XH	1159	175	65	50 x 6	1435	35.2	38.5
681XH	1515	133	127	40 x 8	1715	68.1	72.4
